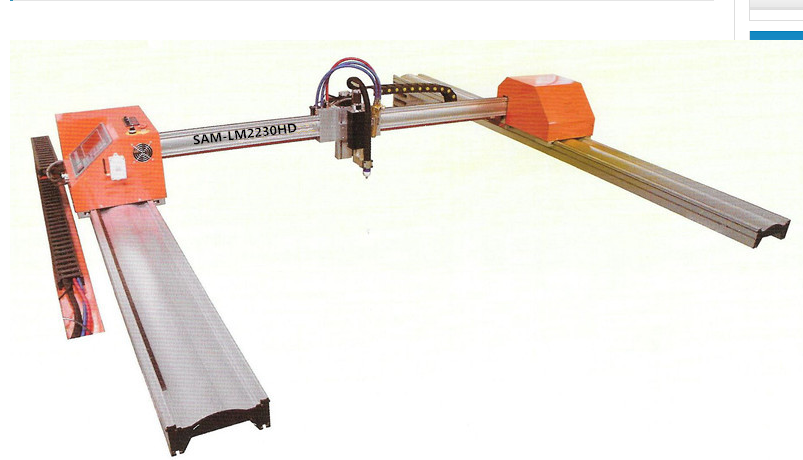

Aluminum longmen plasma cutting machine SAM-LML2230HD
- Brand: sinosam
- Type: SAM-LML2230HD
- Price: $5990.5476 RMB
- Promotion: $ 5719.6183 RMB ( 0 Customers Bought)
Product features:
1. This equipment is processed using the latest aviation aluminum meticulously, elegant appearance, exquisite and durable, new transmission structure, precision rack and special reducer, ensure the accuracy of the transmission, Y axis double motor drive, provide large torque drivers.Control cables for imported block flame retardant wear-resistant materials refined but become.2. The drive system adopts the chip control, high precision motor, ac power, large torque, high speed smoothly.
3. The CNC system adopts 7 "numerical control system, transformation in both English and Chinese, high accuracy arc pressure type automatic tuning.
4. Optional features, plasma (D)/plasma flame (HD).
5. Optional configuration, stepper motor/servo motor (S) (B).
6. Optional machine (cutting) : A, 2230:2200 * 3000 mm
B, 2240:2200 * 4000 mm
C, 2260:2200 * 6000 mm
D, 22120:2200 * 12000 mm
technical parameters
|
Model |
SAM-LM2230 |
|
|
Cutting method |
Plasma |
Flame |
|
Cutting size |
2200*3000mm |
|
|
Machine size |
3200*4000mm |
|
|
Lifting travel |
≤100mm |
|
|
Max travel speed and cutting speed |
18000mm/min 0-15000mm/min |
|
|
Running accuracy |
≤0.005mm |
≤0.1mm |
|
Height control |
Are pressure auto THC |
Lifting body |
|
Cutting thickness |
Less than 20mm is the best |
6-150mm |
|
Cutting gas |
Air |
Oxygen+ethyne(propane) |
|
Gas pressure |
0.4-0.8Mpa |
|
|
Power |
220V/380V 50HZ(we suggest 63A、120A、160A、200A，etc) |
|
|
Number of cutting torch/nozzle |
One set of plasma cutting torch/flame cutting torch,10pcs nozzle |
|
|
Support software |
Starcam, FASTCAM |
|
